27.5" X 7" X 2.25" Aluminum Sport Intercooler+Custom 64mm Piping Upgrade+Coupler

• 100% Brand New Items, Never Used Or Installed
• Universal Custom DIY (Do It Yourself) Piping Kit
• Perfect For All Turbocharger / Supercharger Projects
• THIS KIT WILL REQUIRE CUTTING / WELDING / MODIFICATIONS
• No Installation Guides Are Included, We Highly Recommend To Seek Professional Installation

INTERCOOLER

• High Performance Tube & Fin Racing Intercooler Unit
• CNC Machined From AL6061-T6 Billet Aluminum With An Anodized Finish
• All TIG Welded For Extra Solid Support
• Allow More Horsepower At The Same Boost Level and Even More Power At The Higher Boost Level
• Helps Reducing Engine Inlet Temperature For Better Overall Cooling Of Engine
• Intercooler Size: 27.5" x 7" x 2.25"
• Core Size: 21.5" x 7" x 2.25"
• Inlet / Outlet: 2.5"
• Brackets Are Not Included

PIPING KIT

• CNC Machined From AL6061-T6 Billet Aluminum With An Anodized Finish
• Increases Up To 65% Air Flow Compared To Standard Bent Piping
• 2.5" Inlet / Outlet
• All Mandrel Bent Piping With Beaded Flared Ends
• Pipes Are All 1/16 Inches Thick

SILICONE COUPLERS

• Triple Reinforced Silicone Able To Withstand High Heat And Pressure
• Will Reduce Vibration Transfer Due To Hard Impact Shifting Or Engine Movement
• Reduce The Chance Of Charge Pipe Blow Out By Reducing Movement

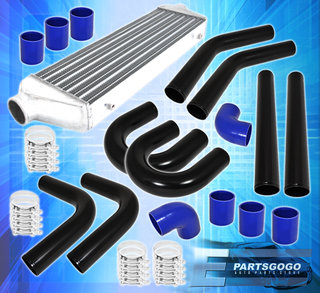

PACKAGE INCLUDES

• x1 Intercooler
• x2 Straight Pipes
• x2 U Pipe
• x2 90 Degree Pipes
• x2 120 Degree Pipes
• x8 Silicone Couplers
• x16 Stainless Steel T-Bolt Clamps
