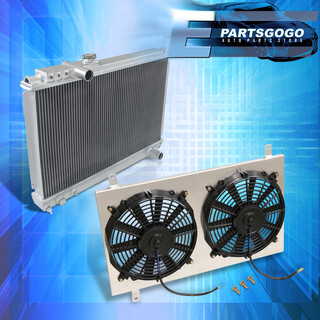

For 86-92 Toyota Supra 7MGE 1JZ Dual Core Aluminum Cooling Radiator & Fan Shroud

• 100% brand new items, never used or installed.
• Made by OEM approved manufacturers with materials that meets or exceeds strict OEM requirements.
• Manufactured from high quality T-6061 billet aluminum construction with precision TIG-welded end tanks for superior strength and durability.
• Increases engine cooling efficiency by 35-45% heat radiation, reducing possibility of overheating.
• Raises coolant capacity and significantly improves heat exchange when compared to factory stock units.
• Measurements (Estimated):
  • Overall Size: 26" x 18" x 2.5"
  • Core Size: 24.75" x 14.75"
  • Inlet/Outlet: 1.25"/ 1.50"

Aluminum Radiator Dual Fan Shroud Kit:

• Manufactured from high quality T-6061 billet aluminum for superior strength and durability.
• Improves both engine performance & cooling efficiency by driving out excessive heat, reducing the possibility of overheating.
• Facilitates highly efficient dispersal of heated air that is released from the coolant.
• High performance design significantly improves heat exchange when compared to factory stock units.
• Can be configured in either push or pull type: remove the bolt at the center of the fan and reverse the fan blades.
• Specifications (Estimated):
  • Fan Diameter: 12" / 304.8mm
  • Fan Width: 2.5" / 63.5mm
  • Shroud Length: 25.5" / 647.7mm
  • Shroud Height: 14.75" / 374.65mm
  • Shroud Width: 0.75" / 19.05mm
  • Maximum Fan CFM: 1,730 CFM
  • Maximum Fan RPM: 2,250 RPM
  • Voltage: 12V
  • Power: 80W
  • Amp Draw: 12.70 amps
  • Number of Blades: 20 Blades

Notes:

• * Wiring/splicing will be required for radiator fan to complete installation. *
• No installation guides are included, we highly recommend seeking professional installation.

Compatible/Replacement for:

• 1986-1992 Toyota Supra (JZA70) (Manual Transmission Only)

**Intended for Manual Transmission Models; Automatic Transmission Models Will Require Upgrading to an External Oil Cooler**
